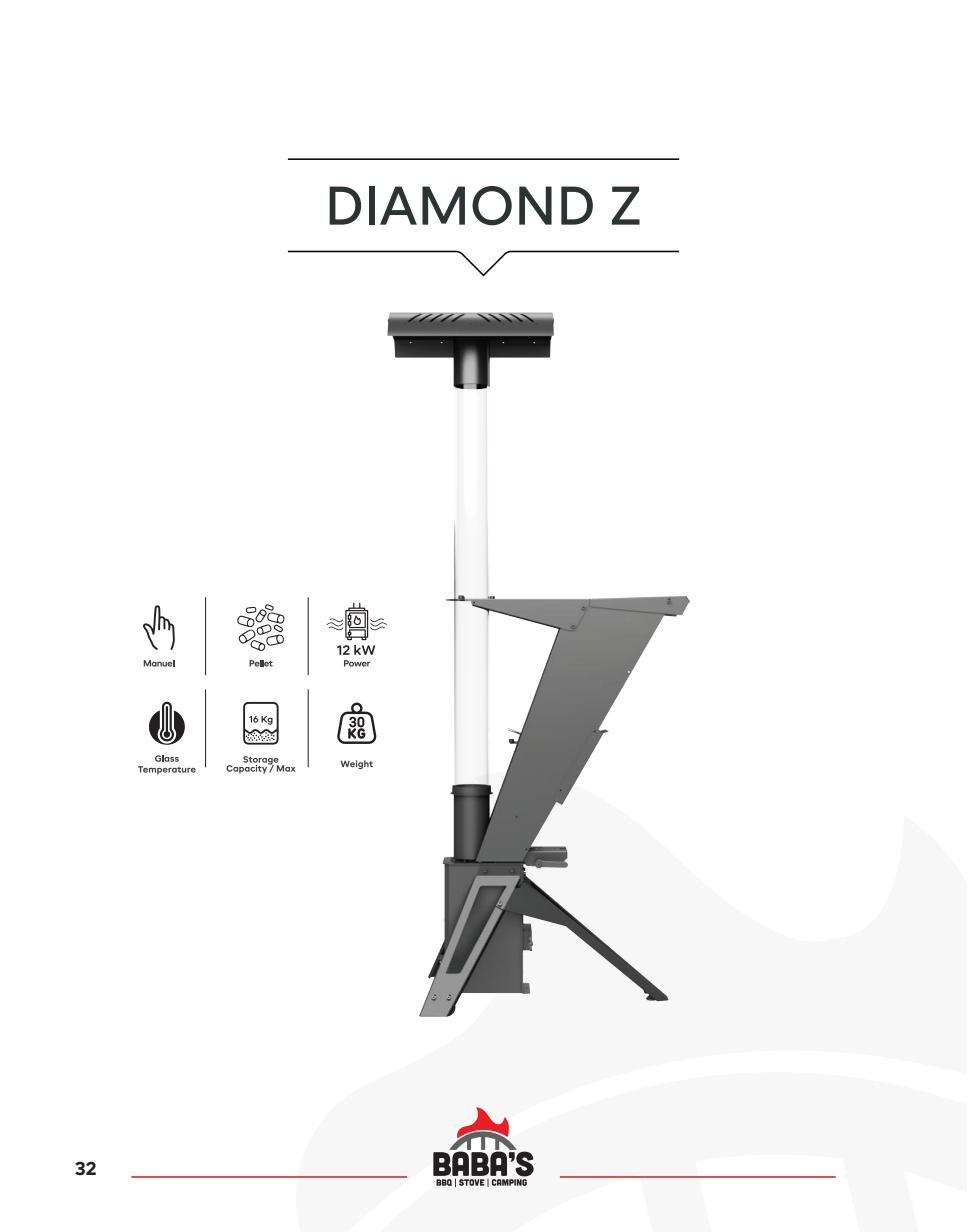

Diamond Z

Manual Outdoor Pellet Stove

£749

Free UK delivery consultation available — VAT included

The Diamond Z is a gravity-fed, manual dry system pellet stove designed for outdoor use. Featuring a striking transparent glass flue tube, angular steel pellet hopper, and a sturdy foldable tripod base, it delivers serious heat output of up to 12 kW without requiring any electrical connection.

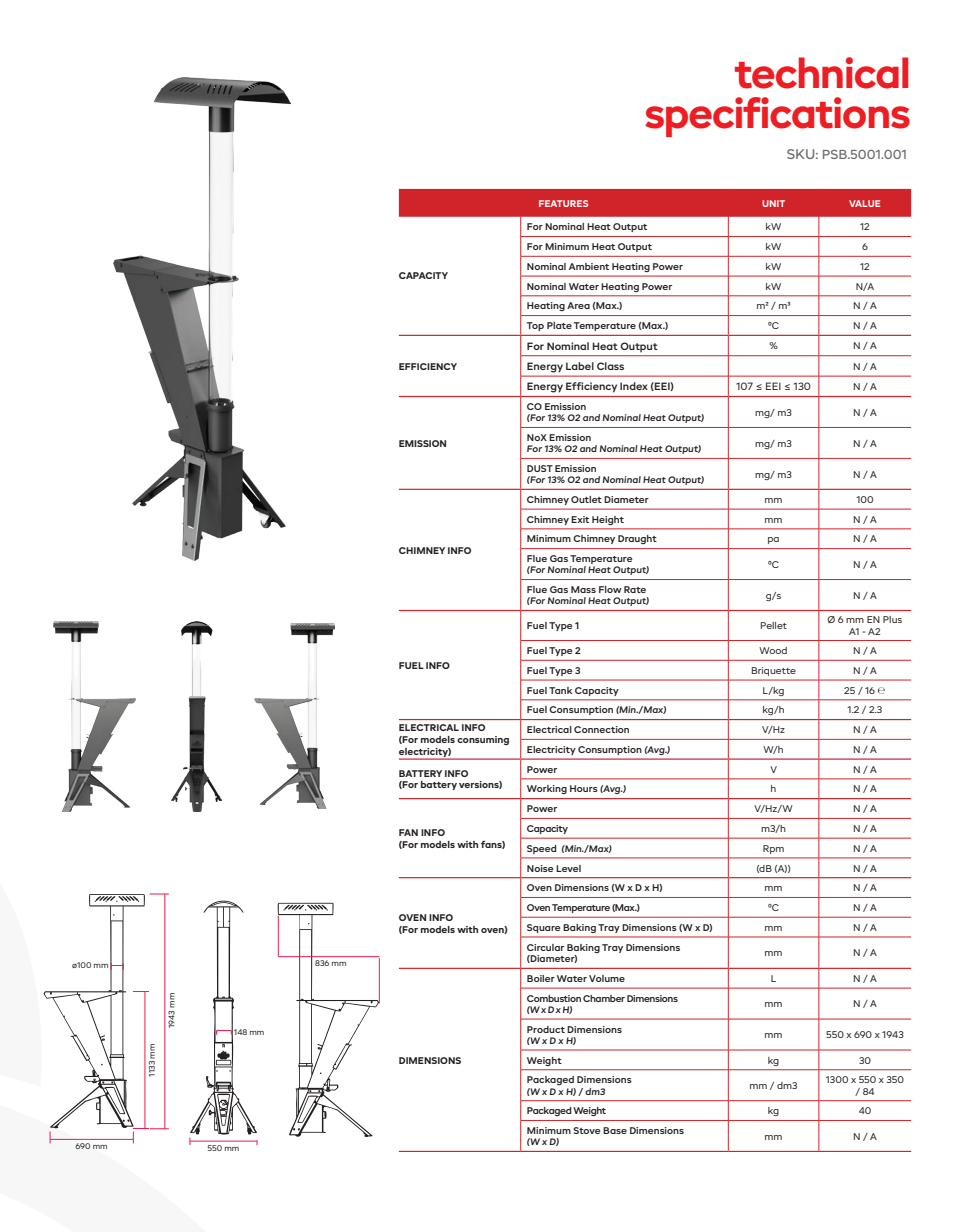

Enquire Now → View Full Specs

12 kW OutputPowerful heat, no electricity

CE CertifiedEN 12815:2006 approved

Manual SystemNo electricity required

Long BurnExtended pellet burn time

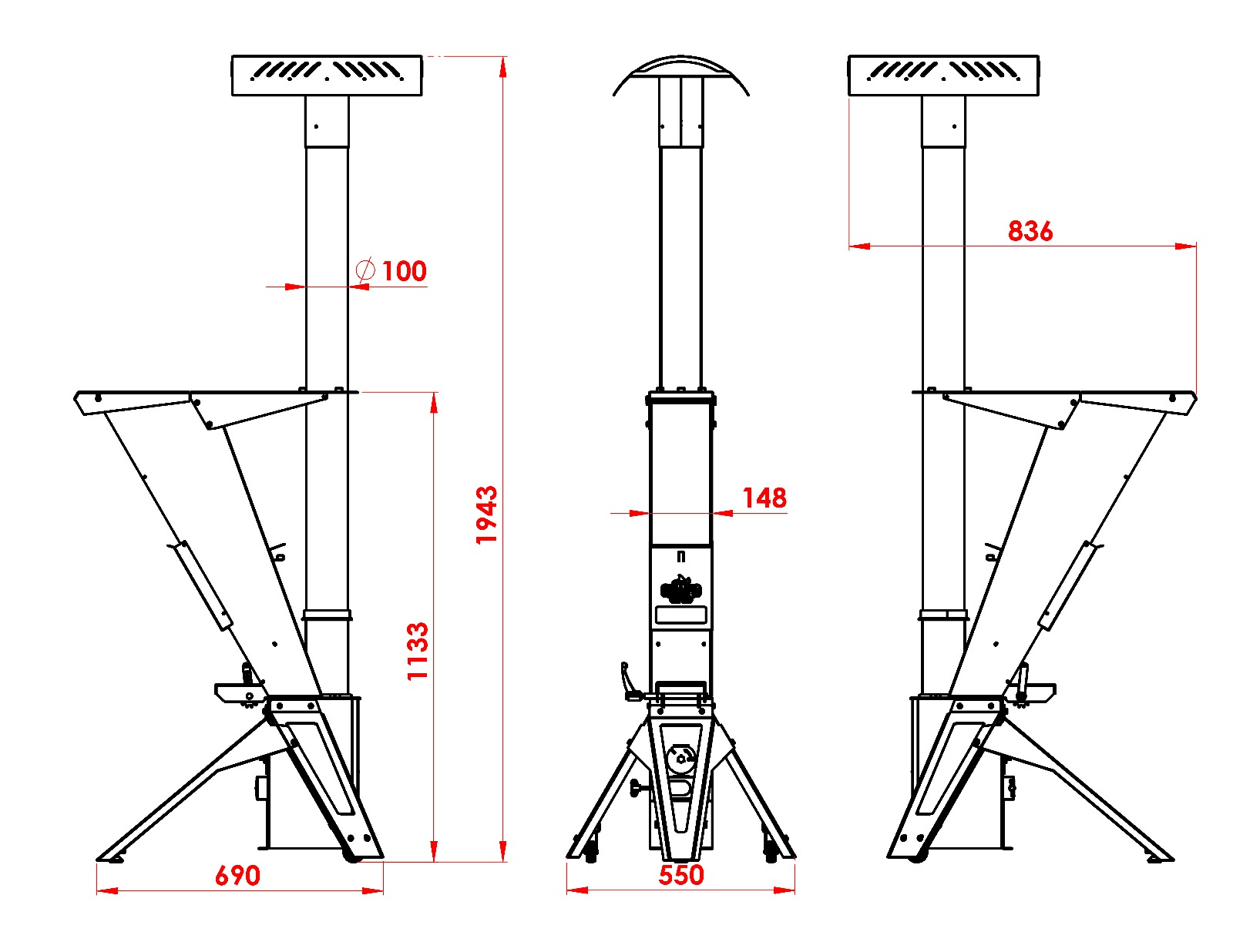

Dimensions

Precise Measurements

Total Height1943 mm(76.5”)
Body Height1133 mm(44.6”)
Width (with hopper)836 mm(32.9”)
Base Width690 mm(27.2”)
Depth550 mm(21.7”)
Flue Tube Diameter⌀ 100 mm(3.9”)
Body Width148 mm(5.8”)
Min Distance from Flammables600 mm(23.6”)

Why Diamond Z

Engineered Excellence

Every detail of the Diamond Z has been designed with purpose — from the transparent flame display to the manual gravity-fed system.

Visible Flame Display

The transparent borosilicate glass flue tube creates a mesmerising flame display, turning functional heating into an atmospheric centrepiece.

Zero Electricity

Fully manual gravity-fed pellet system means complete independence from power sources. Perfect for remote locations and off-grid use.

Heavy-Duty Steel

Built from thick gauge powder-coated steel with precision welding. The angular Z-shaped hopper is both structural and iconic in design.

Portable Design

The foldable tripod base and modular construction allow for easy transport and setup at any outdoor venue or event.

Pellet Efficiency

Uses standard wood pellets for clean, efficient combustion. Adjustable from 6 kW to 12 kW output to suit any environment.

CE Certified Safety

Fully tested and certified under EN 12815:2006. Meets all European safety standards with documented minimum clearances.
